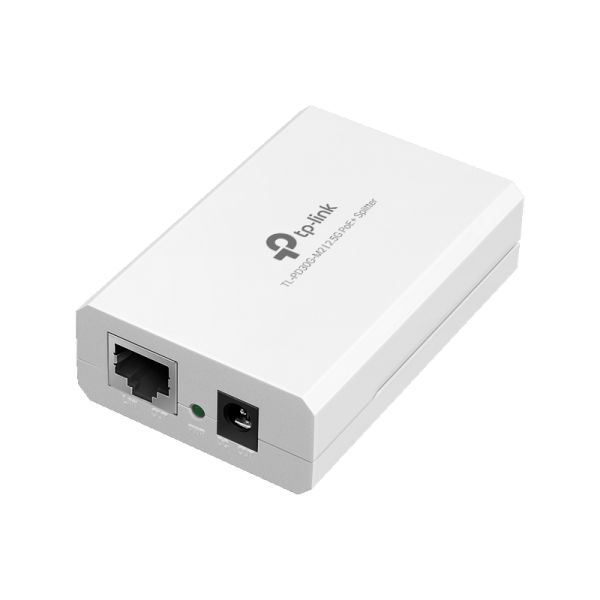

TP-Link TL-PD30G-M2, 2.5G PoE+ Splitter

Features:

• IEEE802.3af/at compliant
• Selectable power output
• Plug-and-Play, requires no configuration

Specifications:

HARDWARE FEATURES

• Interface :1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port
  1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port
  1 12V / 9V / 5V DC OUT Power Output Port
• Network Media :10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-T: UTP category 5e, 6 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  2.5GBASE-T: UTP category 5e, 6 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
• Power Supply :12VDC 2A, 9VDC 2A, 5VDC 2A
• Basic Function :Compatible with IEEE 802.3af/at compliant PSEs
  Delivers power up to 100 meters
  Optional 12VDC, 9VDC or 5VDC power supply
• LED Indicator :ON: Connected to PSE correctly
  Off: No PSE is connected
• Dimensions ( W x D x H ) :3.2*2.1*0.9 in (80.8*54*24 mm)

SOFTWARE FEATURES

• Basic Function :Compatible with IEEE 802.3af/at compliant PSEs
  Delivers power up to 100 meters
  Optional 12VDC, 9VDC or 5VDC power supply

OTHERS

• Certification :FCC, CE, RoHS
• Package Contents :TL-PD30G-M2
  Power Cord
  Installation Guide
• System Requirements :Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
• Environment :Operating Temperature: -5°C~45°C (23°F~113°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90%RH non-condensing
  Storage Humidity: 5%~90%RH non-condensing
