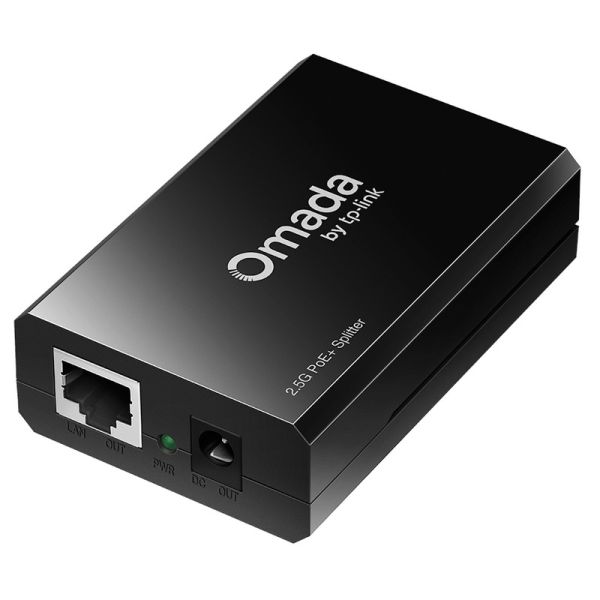

TP-Link POE260R Omada 2.5G PoE+ Splitter

TP-Link POE260R Omada 2.5G PoE+ Splitter

TP-Link Omada 2.5G PoE+ Splitter - 2.5G PoE+ Splitter

Features:

• IEEE 802.3af/at compliant
• Selectable power output
• 2.5 Gigabit speed support
• Plug-and-Play, no configuration required

Specifications:

HARDWARE FEATURES:

• Interface10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port
  10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port
  12V / 9V / 5V DC OUT Power Output Port
• Network Media10BASE-T:2-pair UTP/STP of Cat. 3,4,5 (maximum 100 m)
  100BASE-TX:2-pair UTP/STP of Cat. 5 or above (maximum 100 m)
  1000BASE-T:4-pair UTP/STP of Cat. 5e or above (maximum 100 m)
  2.5GBASE-T:4-pair UTP/STP of Cat. 5e or above (maximum 100 m)
• Power Supply12VDC/ 2A,9VDC/ 2A or 5VDC/ 2A
• Basic FunctionCompatible With IEEE 802.3af/at Compliant PSEs
  Delivers Power Up To 100 Meters
  Optional 12VDC, 9VDC or 5VDC Power Output
• LEDPWR
• Dimensions ( W x D x H )3.2 x 2.1 x 0.9 in. (80.8 x 54 x 24 mm)

SOFTWARE FEATURES:

• Basic FunctionCompatible With IEEE 802.3af/at Compliant PSEs
  Delivers Power Up To 100 Meters
  Optional 12VDC, 9VDC or 5VDC Power Supply

OTHERS:

• CertificationFCC, CE, RoHS
• Package ContentPOE260R
  Power Cord
  Installation Guide
• EnvironmentOperating Temperature:-5°C~45°C (23°F~113°F)
  Storage Temperature: -40°C~70°C (-40°F~158°F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
