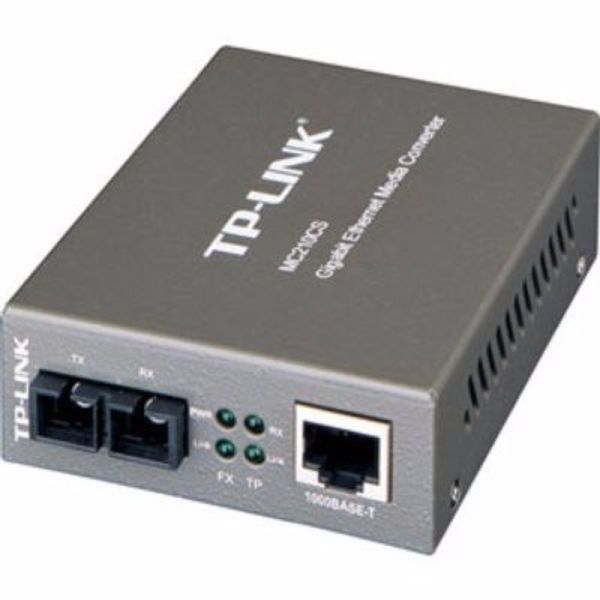

TP-Link MC210CS Gigabit Ethernet Media RJ45 to SC Fiber Converter

TP-Link MC210CS Gigabit Single-Mode Media Converter

Features:

• 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3ab and IEEE 802.3z
• Extends fiber distance up to 15km

Specifications:

MEDIA CONVERTER & MODULE

• Standards and Protocols :IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
• Basic Function :Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  Extends fibre distance up to 20km

• Ports :1x 1000M SC/UPC port
  1x 10/100/1000M RJ45 port (Auto MDI/MDIX)
• Wave Length :1310nm
• Network Media 1000BASE-LX :Single-mode Fiber
• Network Media 1000BASE-T :UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
• LED Indicators :PWR, Link/Act
• Dimensions (W*D*H) :3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
• Power Supply :External Power Adapter
• Max Power Consumption :1.8W
• Safety & Emission :FCC, CE, RoHS
• Package Contents :• Media Converter MC210CS
  • Power Adapter
  • Installation Guide
• Environment :• Operating Temperature: 0?~50? (32?~122?)
  • Storage Temperature: -40?~70? (-40?~158?)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
